Automatic Meat Food Stuffing Mixer
المعلمات
| نموذج | 50 / 100 / 150 / 150 Electric Tilt / 200 Electric Tilt / 300 Electric Tilt / 750 |
| ank Capacity (L) | 70–1000 |
| Production (kg/min) | 32–380 |
| Screw Speed (r/min) | 55 (single, dual, or four-direction depending on model) |
| الطاقة (كيلووات) | 0.37–4.4 (single/dual gear reducers) |
| Machine Weight (kg) | ≈100–700 |
| Number of Paddles | 6–40 (single or dual shaft configuration) |
| Voltage (V) | 380 |
| المادة | SUS304 stainless steel; sides 4–8 mm, tank 2.5–4 mm |
| Frame | Stainless steel square tube |
| الأبعاد (مم) | Please refer to the detailed specification table |
يمكنك الآن طلب التفاصيل الفنية من مديري المشاريع لدينا

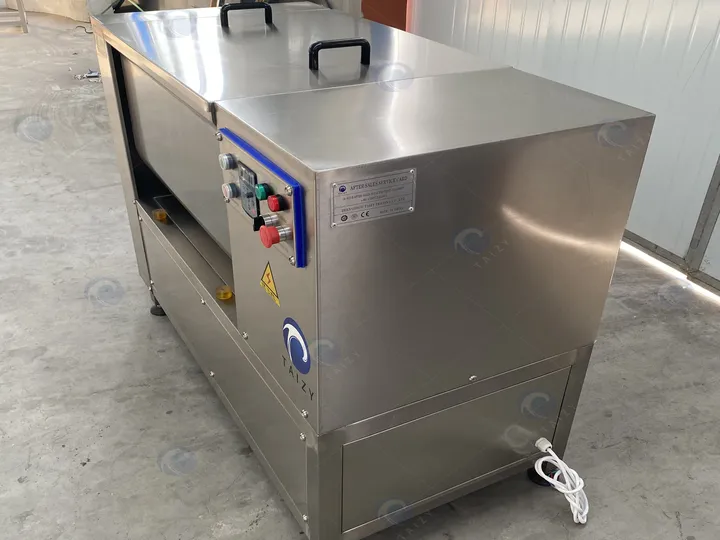

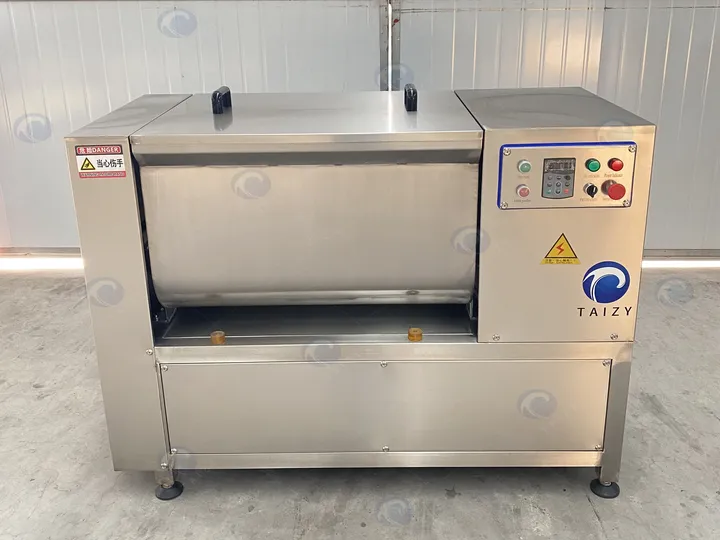

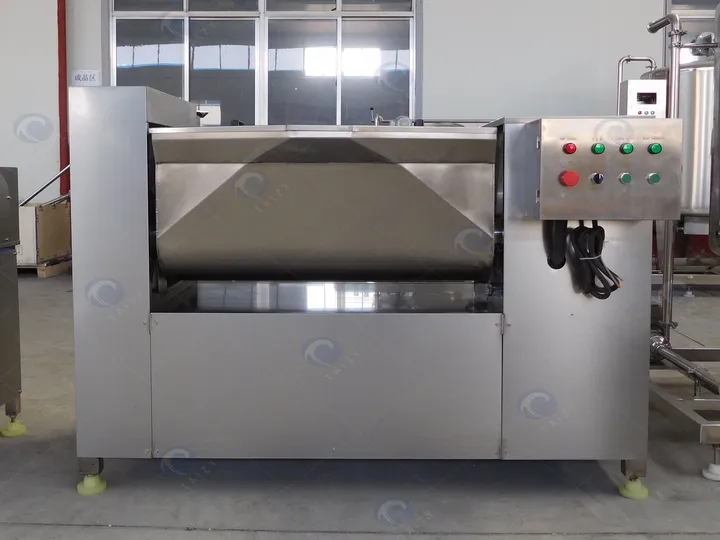

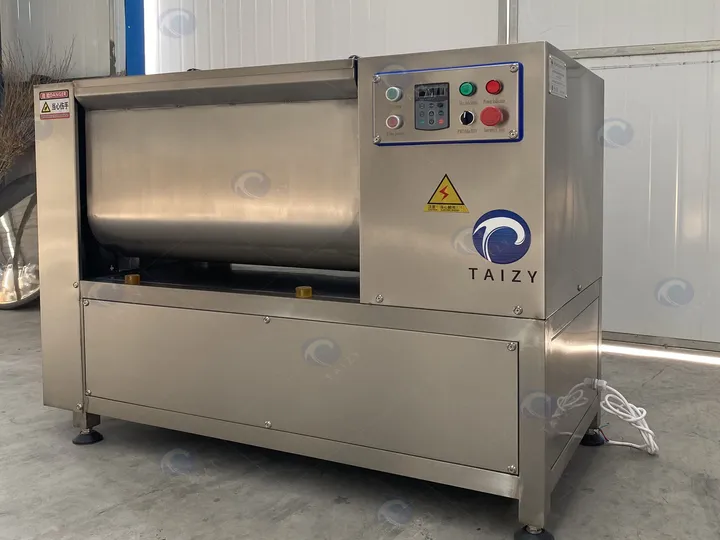

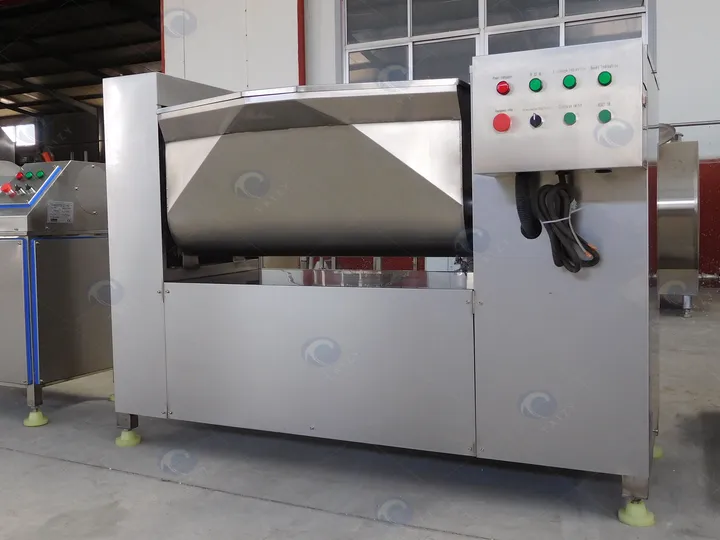

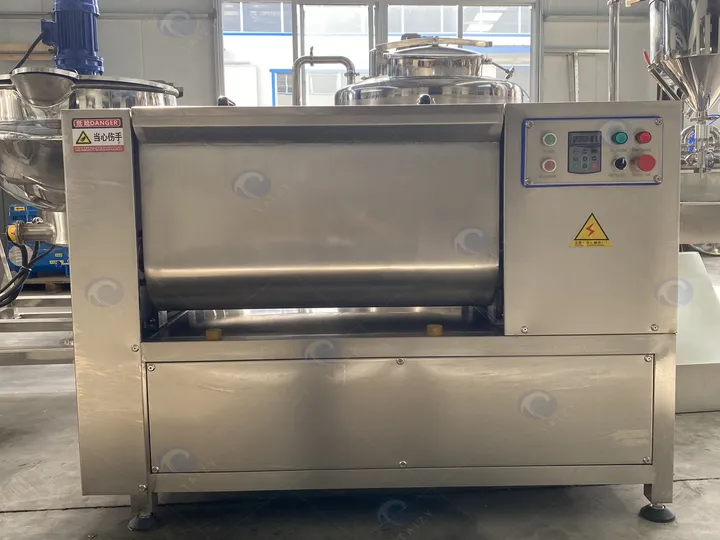

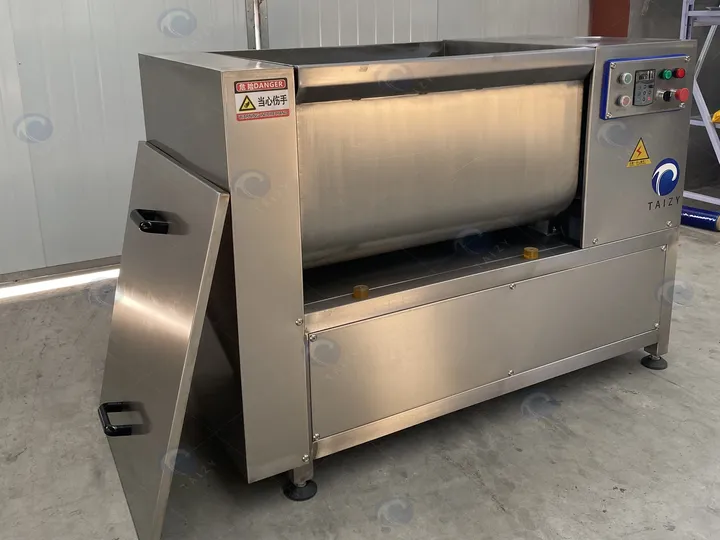

The automatic meat food stuffing mixer is a professional machine for mixing meat and food fillings. It is widely used in meat processing plants, central kitchens, and food factories. The machine uses a screw or double-shaft mixing system. It turns and kneads the materials quickly. The filling becomes evenly mixed and well seasoned in a short time.
Different models have a capacity of 32–380 kg per minute. The tank volume ranges from 70L to 1000L. It is suitable for small workshops and large industrial production.
The whole machine is made of food-grade SUS304 stainless steel. The structure is strong and stable. Some models are equipped with dual gear reducers and multi-directional mixing. The mixing is more uniform and efficient. The machine supports electric tilting for easy discharge. It is easy to operate and helps improve filling quality and production efficiency.
Functions of the Automatic Meat Food Stuffing Mixer
Multi-directional even mixing
- Supports single, double, or four-direction screw rotation. The speed is 55 r/min. The mixing force is moderate. The filling is evenly mixed without damaging the material structure.
High-efficiency, large capacity processing
- Models with double shafts and multiple gear reducers can mix large volumes at the same time. This improves efficiency and meets mass production needs.
Easy discharge and cleaning
- The 150 electric tilting model has an electric tilting design. Discharge does not need manual help. The machine is easy to clean with no dead corners. It reduces the number of operation steps.
Precise mixing design

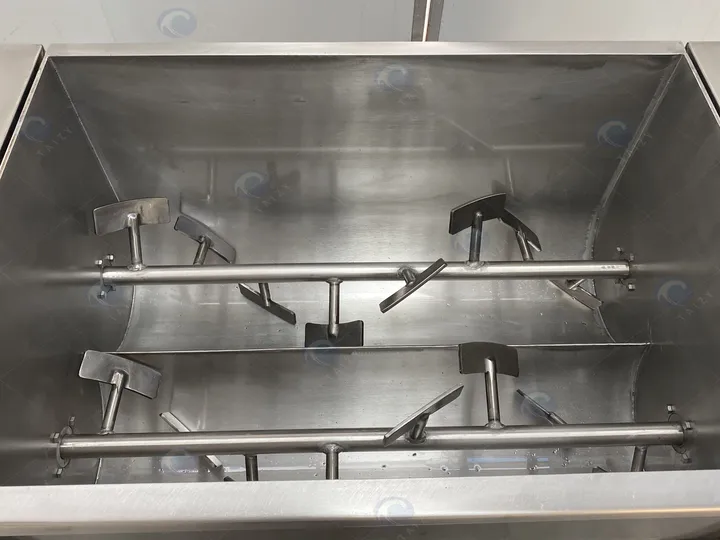

- Different models use different numbers of mixing paddles. They match the tank size accurately. The filling is fully mixed up and down, left and right. This ensures better mixing results.
Multiple specifications for production needs
- The full series covers different capacities and tank volumes. It is suitable for small batches and large ones.
- industrial filling production.
Application Materials
- Meat fillings: Suitable for mixing pork, beef, mutton, and other single meat fillings.
- Vegetable fillings: Suitable for chives, cabbage, mushrooms, and other vegetable fillings.
- Mixed fillings: Supports even mixing of meat and vegetable fillings. It meets different flavour needs.
- Wide food applications: Can be used for fillings of buns, dumplings, wontons, tangyuan, meatballs, sausages, and other foods.
- Different material conditions: Can process fresh, frozen, and seasoned materials. It meets various processing needs.
Advantages of Meat Food Stuffing Mixer
High-quality and durable material
All parts in contact with the material are made of SUS304 food-grade stainless steel. The tank and side panels are thickened for corrosion resistance and easy cleaning. It meets food hygiene standards and has a long service life.
Efficient mixing
Stable screw speed at 55 r/min with single, double, or four-direction rotation and multiple paddles. Achieves 360° thorough mixing without damaging material structure, ensuring consistent filling texture
Reasonable structure

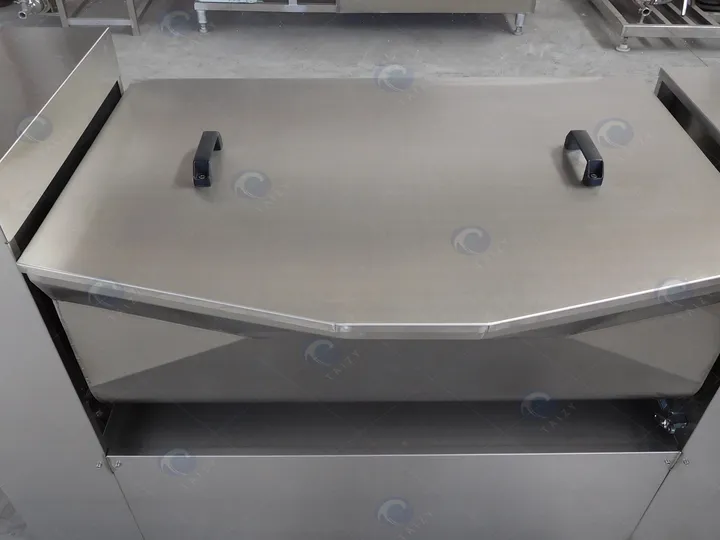

Frame made of stainless steel square tubes, sturdy and strong. Some models support electric tilting for easy discharge. Simple tank and machine design make cleaning and daily maintenance easy.
Varied configurations
Full series from Model 50 to 750. Options include single/double shafts, single/multiple gear reducers, and different tank volumes. Production capacity can flexibly match small batches or large-scale industrial production.
Energy-efficient
Power matched to the model from 0.37 kW to 4.4 kW. Multi-gear reducer configuration ensures stable output. High production efficiency with reasonable energy consumption reduces operating costs.
تطبيق واسع
Compatible with fresh, frozen, or seasoned materials. Can process meat, vegetables, or mixed fillings. Suitable for buns, dumplings, meatballs, and other foods, meeting diverse production needs.
Automatic Meat Stuffing Mixing Machine – Technical Specifications
| نموذج | 50 | 100 | 150 | 150 Electric Tilt | 200 Electric Tilt | 300 Electric Tilt | 750 |
|---|---|---|---|---|---|---|---|
| Tank Capacity (L) | 70 | 160 | 220 | 220 | 310 | 350 | 1000 |
| Production (kg/min) | 32 (dual) | 100 (single) | 150 (dual) | 150 | 200 | 220 | 380 |
| الطاقة (كيلووات) | 0.37 | 1.5 | 2.2 (dual reducer) | 2.2 | 3 (dual reducer) | 4.4 (dual reducer) | 4.4 |
| Screw Speed (r/min) | 55 (single) | 55 (dual) | 55 (dual) | — | 55 (four) | 55 (four) | 55 (four) |
| Machine Weight (kg) | ≈100 | ≈200 | ≈350 | ≈300 | ≈300 | ≈500 | ≈700 |
| Number of Paddles | 14 | 6 | 14 | 14 | 16 | 20 (dual shaft) | 20–40 |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| الأبعاد (مم) | 750×560×710 | 1000×540×1110 | 1450×540×960 | 1100×800×1250 | 1200×820×1250 | 1240×900×1460 | 1460×950×1460 |
| Tank Size (mm) | 510×390×370 | 700×420×560 | 900×530×440 | 780×530×500 | 920×710×570 | 1170×790×690 | — |
| المادة | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
| Frame | Stainless steel square tube | Stainless steel square tube | Stainless steel square tube | Stainless steel square tube | Stainless steel square tube | Stainless steel square tube | Stainless steel square tube |
Note: Some models are equipped with a dual gear reducer system. Specific configurations can be customized according to your needs.
Why Choose Taizy?
Trusted Certifications
- Certified with ISO9001 quality management system, CE, SGS, and TUV. Reliable quality, safe for export.
Food-grade Manufacturing
- Entire machine made of SUS304 stainless steel, meeting international food hygiene standards.
One-year Warranty
- One-year warranty for the whole machine. Core components are stable and durable.
Comprehensive After-sales Support
- Detailed installation manuals provided.
- Remote video guidance for installation and debugging.
- Engineers available on-site for installation and training if needed.
- Long-term technical support and spare parts supply.
Taizy stuffing mixers offer stable performance, reliable quality, and professional service, helping food processing companies improve efficiency and product quality. If you also need a meat grinder, we offer a full range of meat processing machines. Inquiries are welcome.
