Fully Automatic Egg Processing Line | Egg Washing Line
Параметры
| Вместимость | 5,000–30,000 eggs/hour |
| Напряжение | 380v(customizable) |
| Мощность | 4.2 kW/7.5 kW/10 kW |
| Размер | According to the specific parameter table |
| Материал | 304 Stainless Steel |
| Machine Length | About 8–10 m |
| Вес | About 850–1300 kg |
| Processing Steps | Egg Loading → Washing → Rinsing → Air Drying → Optical Inspection → Egg Collection |
Теперь вы можете спросить наших менеджеров проектов о технических деталях

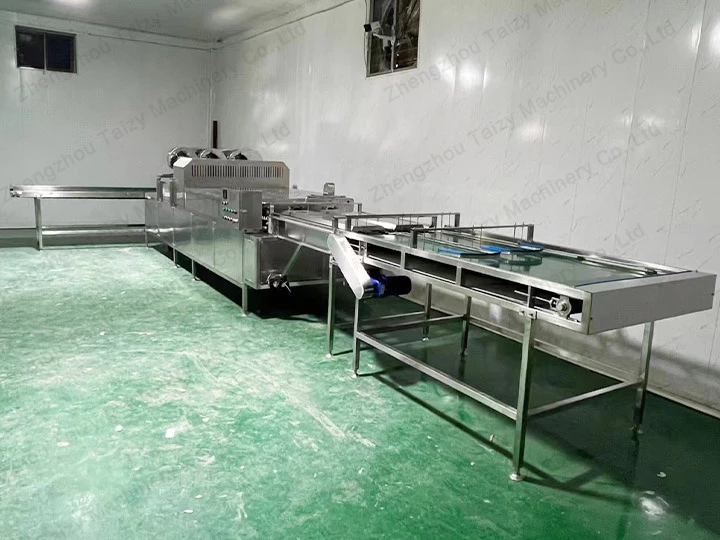

The Taizy fully automatic egg processing line is designed for egg processing plants, farms, and egg traders. It integrates egg washing, air drying, and optical inspection in one system. Available in single-, double-, and triple-row configurations, it handles 5,000–30,000 eggs per hour. The line completes the full process: egg loading in water, spray washing, brush cleaning, strong air drying, optical inspection, and automatic collection.
Made of 304 stainless steel, the machine meets food hygiene standards. It runs stably, cleans thoroughly, and offers a high degree of automation, making it an ideal solution for modern egg processing plants to improve efficiency and product quality.
Functions of the Fully Automatic Egg Processing Line
Automatic Egg Loading
Conveyor system loads eggs automatically, reducing breakage and improving loading efficiency.
Multi-Stage Brush Cleaning
360° full-surface brushing removes dirt completely, ensuring egg hygiene.
Circulating Water Filtration System
Automatically filters and reuses water, saving water and reducing operating costs.
High-Power Air Drying
Air knives quickly dry eggshells, shortening drying time and keeping eggs clean.
Optical Inspection & Removal
Manual or assisted optical inspection quickly removes cracked or dirty eggs, improving product quality.
Automatic Egg Collection Platform
Smooth conveyance for easy grading or packaging, reducing manual handling and increasing production efficiency.
The Process of Egg Processing Line
Processing Flow
Automatic Egg Loading → Brush Cleaning → Rinse → Air Drying → Optical Inspection → Egg Collection
Egg Processing Line Stages
- Egg Loading: Fresh eggs are evenly loaded through a water tank, soaked to cushion and reduce breakage.
- Очистка: 360° brush cleaning of eggshells, with circulating water filtering dirt to save water and protect the environment.
- Rinsing: High-pressure water removes remaining dirt, ensuring clean and hygienic eggs.
- Air Drying: Powerful air knives quickly dry eggshells for easy subsequent handling.
- Optical Inspection & Removal: Manual or assisted inspection removes cracked or dirty eggs to ensure quality.
- Egg Collection & Conveying: Eggs are smoothly conveyed to grading or packaging, achieving full-line automation.
Egg Processing Equipment in the Egg Production Line
Ниже представлены машины, входящие в линию производства яиц. Вы можете узнать о функциях и особенностях каждой машины ниже.

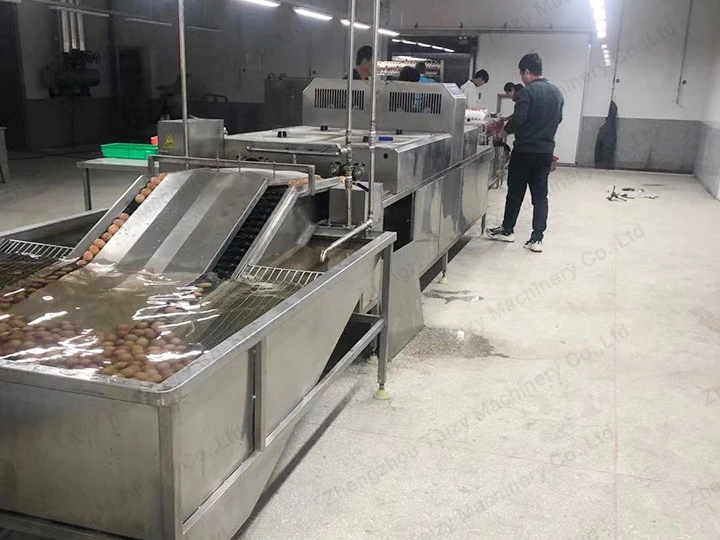

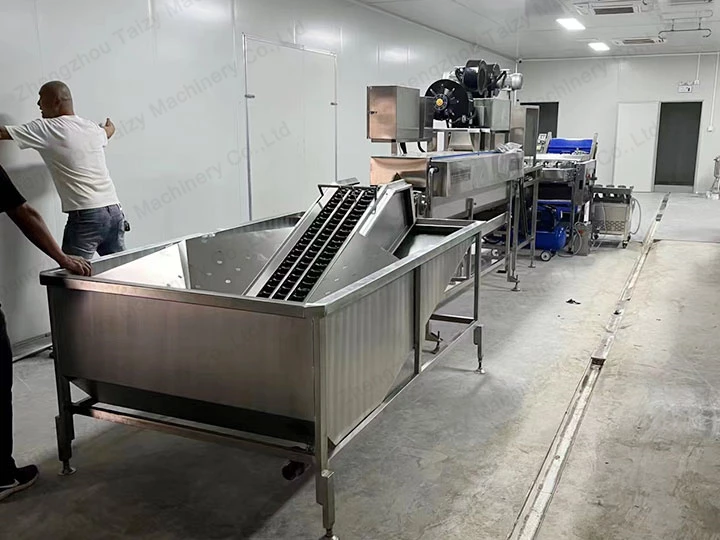

Egg Loading Tank
The egg loading tank evenly transfers fresh eggs onto the production line. The water cushioning reduces breakage and ensures smooth transfer to the next stage.
Egg Washing Machine
The egg washing machine uses 360° brushes to clean eggshells, with circulating water filtering dirt to save water. It also integrates air drying and optical inspection to ensure hygienic, high-quality eggs.
Egg Collection Platform
The egg collection platform smoothly conveys processed eggs to grading or packaging, reducing manual handling and improving production efficiency, supporting full-line automation.
Advantages of the Egg Processing Line
- Multiple Configurations: Available in single-, double-, and triple-row setups, with a capacity of 5,000–30,000 eggs per hour, suitable for small farms to large egg processing plants.
- Food-Grade 304 Stainless Steel: Entire machine made of 304 stainless steel, rust-proof, corrosion-resistant, and easy to clean, meeting food hygiene standards for safer egg processing.
- Thorough Cleaning & Drying: Brush cleaning plus high-pressure spray removes dirt completely, combined with strong air drying to leave eggshells clean and dry for storage and packaging.
- Stable Operation & Low Failure Rate: Sturdy structure, well-configured motors and components ensure long-term continuous production and extended service life.
- Low Breakage Design: Water-cushioned egg loading and flexible conveying reduce collisions and breakage, protecting egg integrity.
- Fully Automatic Integrated Processing: Combines egg loading, washing, rinsing, air drying, optical inspection, and collection in one line. One-button continuous operation saves labor, improves efficiency, and simplifies operation.
- Easy Installation & Space-Saving: Modular design allows easy transport and on-site setup. Compact layout saves workshop space.
- Versatile for Multiple Egg Types: Suitable for chicken, duck, goose, and other eggs, offering wide applicability with one machine.
Technical Parameters
Single-Row Egg Processing Line
| Наименование | Спецификация |
|---|---|
| Вместимость | 5,000–7,000 eggs/hour |
| Общие размеры | 8,800 × 1,150 × 1,600 mm |
| Мощность | 4.2 kW |
| Напряжение | 380 В |
| Материал | 304 Stainless Steel |
| Вес | 850 kg |
Main Components Dimensions:
- Egg Loading Tank: 2,600 × 1,150 × 1,100 mm
- Cleaning, Air Drying & Optical Inspection Unit: 4,400 × 650 × 1,600 mm
- Egg Collection Platform: 2,000 × 850 × 900 mm
Double-Row Egg Production Line
| Наименование | Спецификация |
|---|---|
| Вместимость | 10,000–15,000 eggs/hour |
| Общие размеры | 8,800 × 1,600 × 1,600 mm |
| Мощность | 7.5 kW |
| Напряжение | 380 В |
| Материал | 304 Stainless Steel |
| Вес | 1,000 kg |
Main Components Dimensions:
- Egg Loading Tank: 2,600 × 1,600 × 1,100 mm
- Cleaning, Air Drying & Optical Inspection Unit: 4,400 × 1,000 × 1,600 mm
- Egg Collection Platform: 2,000 × 850 × 900 mm
Triple-Row Egg Processing Line
| Наименование | Спецификация |
|---|---|
| Вместимость | 25,000–30,000 eggs/hour |
| Общие размеры | 9,800 × 1,600 × 1,600 mm |
| Мощность | 10 kW |
| Напряжение | 380 В |
| Материал | 304 Stainless Steel |
| Вес | 1,300 kg |
Main Components Dimensions:
- Egg Loading Tank: 2,600 × 1,600 × 1,100 mm
- Cleaning, Air Drying & Optical Inspection Unit: 4,400 × 1,400 × 1,600 mm
- Egg Collection Platform: 3,000 × 850 × 900 mm
Egg Production Line Applications
Food industry
- Линии по обработке яиц широко используются в пищевой промышленности для производства различных продуктов на основе яиц.
Bakeries
- Пекарни используют обработанные яйца для приготовления тортов, выпечки и других хлебобулочных изделий.
Ready-to-eat products
- Обработанные яйца используются в производстве готовых к употреблению блюд и закусок.
Factors to Consider When Purchasing an Egg Production Line
Производственная мощность
- При выборе линии по переработке яиц первое, что нужно учесть, это мощность оборудования. Определите скорость переработки и выход продукции в соответствии с вашими потребностями.
Качество и долговечность
- The quality and durability of the equipment are important factors in determining its long-term performance. It is better for you to choose equipment that is made with high-quality materials and manufacturing processes. The equipment in the Taizy egg production line is made of 304 stainless steel.
Стоимость и бюджет
- Choose the right equipment for your budget. While high-quality equipment may be more expensive, it is more economical in the long run. This is because they cost less to repair and replace.
Why Choose Taizy?
- Certified Quality: ISO9001 and CE certified, tested by SGS and TUV, ensuring international standards for quality and safety.
- Full Machine Warranty: 1-year warranty with free repair or replacement of core components.
- Comprehensive After-Sales Service: Standard installation manual, remote guidance, and optional on-site engineer support for installation and commissioning.
- Technical Support: Lifetime technical consultation, spare parts supply, and equipment maintenance/upgrades.
- Export-Grade Reliability: Designed to meet domestic and international egg processing plant standards, with stable and reliable performance.
Recommended Related Product
We recommend pairing the egg washing line with a Taizy egg grading machine for seamless integration, achieving fully automated processing from washing → air drying → optical inspection → grading. The machine uses high-precision weighing to sort eggs by weight into multiple grades, improving product standardization and market value. Made entirely of 304 stainless steel, it ensures low breakage during grading and stable operation, making it an ideal companion for egg processing plants to enhance quality and efficiency.
