Industrial Fish Drying Machine | Hot Air Circulation Drying Machine

The Taizy fish drying machine is an industrial food-grade dryer designed for efficient fish processing. It uses hot air circulation with precise temperature control to achieve uniform drying, accurate temperature regulation, and stable continuous operation. With a single-batch capacity of 60–960 kg, it fully meets large-scale production needs and helps improve overall output.

This machine combines durability, safety, and ease of operation, using high-quality food-grade materials that comply with hygiene standards. It is an ideal drying solution for fish processing plants, food factories, and central kitchens, efficiently dehydrating fish while gently preserving its natural nutrients and flavor, and supporting a wide range of fish processing applications.

Suitable Raw Materials

• Fresh Fish: Various freshwater and seawater fish.
• Frozen Fish: Can be directly processed for drying.
• Fish Fillets, Whole Fish, and Fish Snacks: Suitable for different product forms and processing needs.

Widely used in fish snack production lines, hot pot fish slice processing, central kitchens, and food processing factories.

Fish Drying Machine Functions

Hot Air Tray Fish Drying Machine Structure

Une machine déshydratante commerciale complète pour le poisson doit avoir une source de chaleur, un dispositif d'alimentation en air, une boîte de séchage principale et un dispositif de contrôle auxiliaire.

Heat source:   The heat source is a device that generates heat. According to the actual situation, you can choose electric heating or liquefied gas heating.

Dispositif d'alimentation en air : L'air chaud généré par le dispositif d'alimentation en air peut être soufflé dans l'unité principale de séchage par le ventilateur du dispositif d'alimentation en air. Il peut chauffer la machine principale et aider la machine principale à réaliser la circulation de l'air.

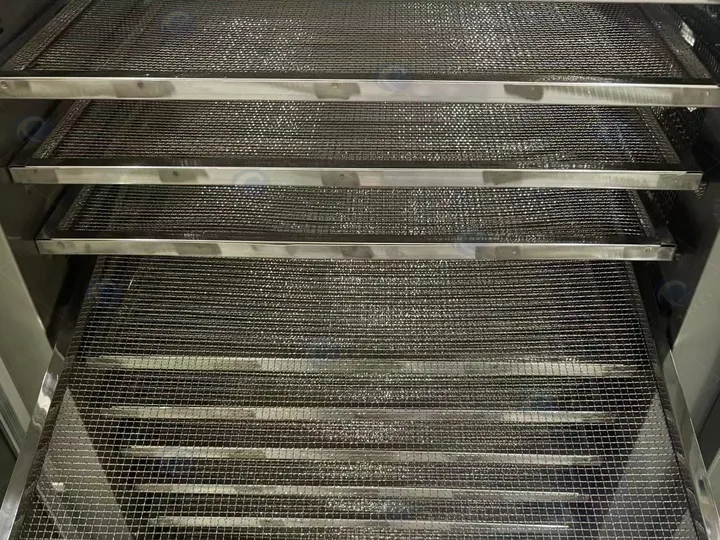

Main drying box:    The main drying box is a cabin that holds fish for drying. Depending on the space and shape of the cabin, the fish dehydrator machine has box type, mesh belt type, and drum-type dryers.

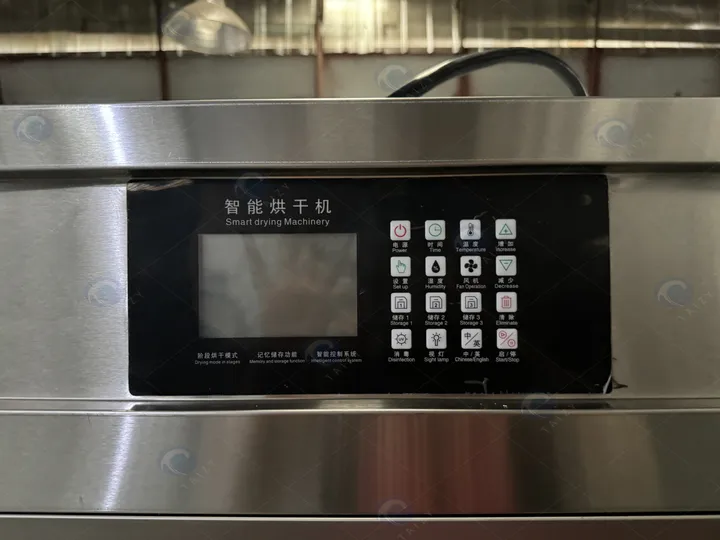

Système de contrôle auxiliaire : Ce système est le système le plus important qui contrôle le fonctionnement de l'ensemble de la machine de séchage de poisson. Il peut contrôler la machine de séchage pour effectuer le contrôle du temps, le contrôle de la température et le contrôle de l'humidité. Les systèmes de contrôle courants comprennent une boîte de commande électrique et un contrôle PLC.

Technical Parameters

Below, I will categorize the fish dryer machines by size and different specifications. Here are their technical parameters:

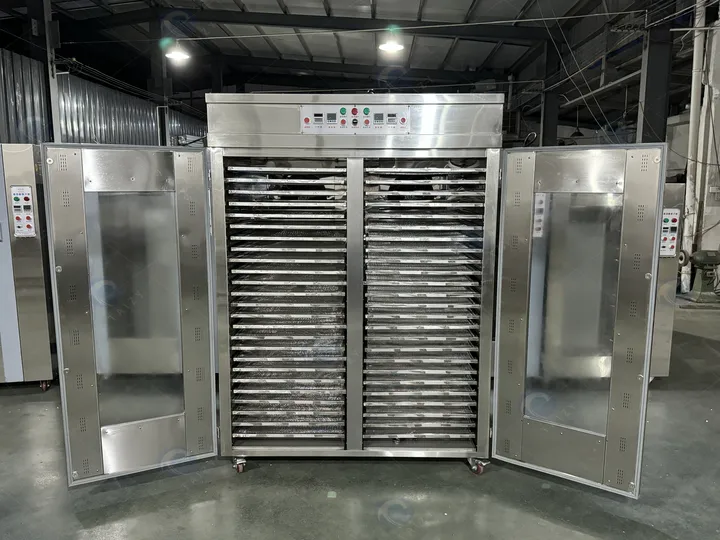

DX Series – Double Door(Mechanical/Smart)

Modèle	Product Size (cm)	Puissance	Fans	Capacity (kg)	Export Weight (kg)
XD-145 (Mech/Smart)	M: 90×64×145 S: 93×64×145	3300W	Mechanical: 3 Fans Smart: 3 Large Fans	20–40	120
145G (Mech/Smart)	M:100×69×145 S: 103×69×145	4000W	3 Large Fans	30–60	130
XD-169 (Mech/Smart)	M: 90×64×169 S: 93×64×169	4500W	Mechanical: 4 Fans Smart: 4 Large Fans	20–50	130
169G (Mech/Smart)	M:100×69×169 S: 103×69×169	5000W	4 Large Fans	30–75	140
XD-196 (Mech/Smart)	M: 90×64×196 S: 93×64×196	5800W	5 Large Fans	40–70	150
196G (Mech/Smart)	M:100×69×196 S: 103×69×196	6600W	5 Large Fans	45–90	160

DX Series – Double Door (Rear Air Circulation)

Modèle	Product Size (cm)	Puissance	Fans	Capacity (kg)	Export Weight (kg)
XD-169P (Mech/Smart)	134×94×169	6600W	6 Large Fans	60–100	280
169G Double	142×105×169	6600W	6 Large Fans	90–180	300
XD-189P (Mech/Smart)	134×94×189	8800W	8–10 Large Fans	100–140	300
189G Double	142×105×189	8800W	8 Large Fans	120–210	320
XD-211P (Mech/Smart)	134×94×211	10KW	10 Large Fans	140–180	320
211G Double	142×105×211	11KW	12 Large Fans	150–210	340

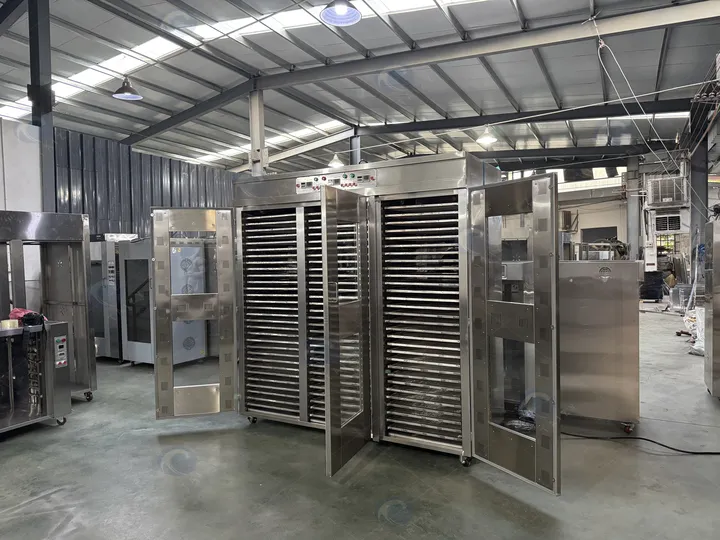

DX Series – Triple Door (Rear Air Circulation)

Modèle	Product Size (cm)	Puissance	Fans	Capacity (kg)	Export Weight (kg)
XD-189P3	201×94×189	12KW	12 Large Fans	160–200	480
XD-189G3	210×104×189	12KW	12 Large Fans	160–200	510
XD-211P3	201×94×211	16.5KW	15 Large Fans	180–220	610
XD-211G3	221×104×211	18.5KW	15 Large Fans	540–640	650

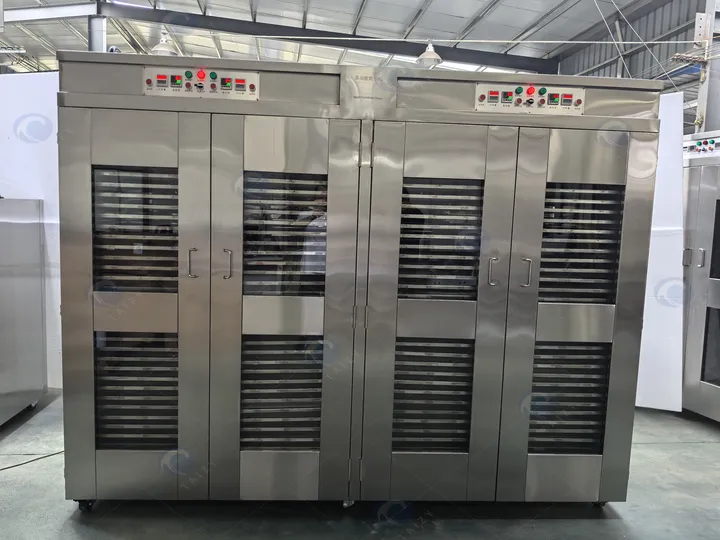

DX Series – Four Door (Rear Air Circulation)

Modèle	Product Size (cm)	Puissance	Fans	Capacity (kg)	Export Weight (kg)
XD-189P4	268×94×189	16KW	20 Large Fans	640–800	600
XD-189G4	284×104×189	18KW	20 Large Fans	720–880	630
XD-211P4	268×94×211	21.5KW	24 Large Fans	860–1020	680
XD-211G4	285×104×211	23.5KW	24 Large Fans	720–960	720

DX-S Series – Economical Version

Modèle	Body Material	Puissance	Fans	Capacity (kg)	Export Weight (kg)
XD-169S	430 Magnetic SS	6000W	8 Small Fans	100	200
XD-189S	430 Magnetic SS	7000W	10 Small Fans	150	250
XD-189S-3	430 Magnetic SS	10500W	15 Small Fans	225	350
XD-206S-3	430 Magnetic SS	12500W	18 Small Fans	250	390
XD-206S-4	430 Magnetic SS	16500W	24 Small Fans	300	520

Notes

• Rotary Models: Standard double-door rotary models have a disc diameter of 50 cm, which can be customized to 60 cm for a larger body. Single-door standard discs are 55 cm in diameter. All-round mesh discs are made of 304 stainless steel.
• Material Options: All series standard bodies are made of 201 stainless steel and can be customized to 304 stainless steel. Mesh size, grid, or round net dimensions can also be customized according to requirements.
• Bottle Dryer Parameters: The basic parameters are the same as standard drying machines. Standard temperature range is 0–100 ℃; temperatures above 100 ℃ require customization.

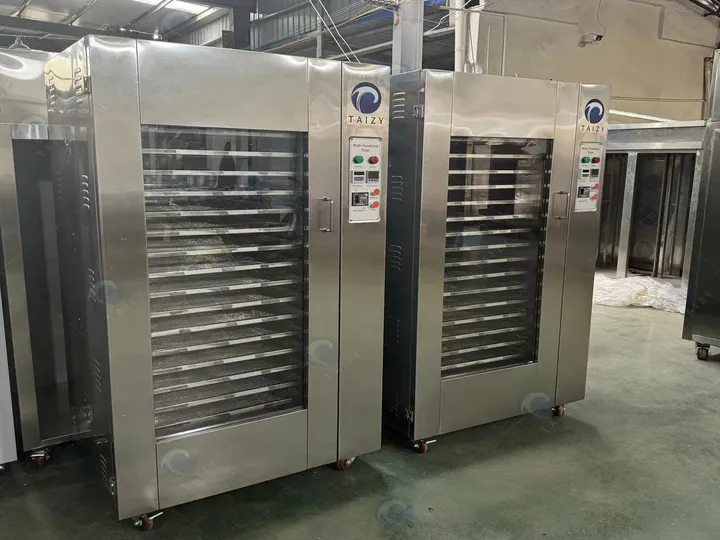

Industrial Fish Drying Machine For Sale

• Energy Efficient: The optimized heating system and hot air circulation design significantly reduce energy consumption while ensuring excellent drying performance. Compared with traditional dryers, it offers better cost efficiency and helps control long-term operating expenses.
• Easy Operation: Equipped with an intuitive control panel for simple parameter adjustment. No specialized technicians are required, and operators can quickly learn to use the machine. Stable operation also makes daily monitoring and maintenance convenient, reducing labor input.
• Quality Control: The gentle drying process preserves proteins, vitamins, and the natural flavor of fish to the greatest extent, preventing nutrient loss and texture changes, and enhancing product value and market competitiveness.
• Flexible Application: Compatible with fresh fish, frozen fish, fish fillets, and fish snacks. Supports multiple specifications and customization, suitable for both large-scale food factories and small to medium-sized processing businesses.
• Safe and Compliant: Made of food-grade materials and equipped with complete safety protection devices. It meets food hygiene standards and production safety requirements, ensuring reliable and compliant operation in various food processing environments.

The Whole Fish Drying Process with the Commercial Fish Drying Machine

Le processus complet de séchage du poisson comprend principalement le traitement des matières premières, le lavage, le salage, l'élimination du sel, le séchage, l'emballage et d'autres processus.

Raw Material Processing

Before drying the fish, the raw fish needs to be processed to some extent. It mainly deals with fish scales, opening the back, removing internal organs, etc. Commercially, these steps can be realized by machines such as a specialized de-scaler, fish belly cutting machine, etc. This step is mainly to pave the way for the marinated fish. Marinating requires cutting the back of the fish and cutting the head off.

Cleaning Fish

After using the above machines to process the fish, some blood and mucus will inevitably adhere to the surface of the fish. Before proceeding to the next step and drying, be sure to clean the blood. Otherwise, dirty blood will affect the color and luster of the final product. You can use a water pipe to wash or use commercial washing machines.

Marinated Fish

In order to ensure the flavor after drying with the fish drying machine, the fish needs to be salted after washing and air drying. This step allows the salt to penetrate into the fish’s body through salt immersion, and to dehydrate the fish’s body at the same time. This makes the fish have a suitable salty taste and achieves the purpose of extending the shelf life.

Lors du salage, il est nécessaire d'adopter différentes méthodes et des quantités de sel appropriées en fonction du type, de la taille et de la variété du poisson. En général, la quantité de sel représente 10 % à 20 % du poids du poisson, et la concentration de l'eau salée pour l'immersion est de 5 % à 15 %. En même temps, le temps de marinade et la température doivent également être ajustés en fonction de la situation spécifique.

Salt Removal

After marinating, rinse the excess salt from the surface of the fish with clean water. It can prevent high salt content on the surface of the fish, resulting in discoloration and deterioration.

Drying Fish

Lors du séchage, il peut choisir des méthodes de séchage appropriées en fonction des conditions météorologiques et des exigences de séchage, telles que le séchage au soleil et les méthodes de séchage mécaniques. En tant que fabricant de machines de transformation de la viande, nous vous recommandons d'utiliser une machine automatique de séchage de poisson. Elle peut contrôler le temps et la température de séchage requis selon chaque étape du séchage du poisson. De plus, le ventilateur de circulation peut garantir que l'air chaud touche tous les aspects du poisson pour assurer un séchage uniforme. En outre, la machine industrielle de séchage de poisson peut sécher de grandes quantités de poisson.

Emballage

Selon les différentes formes d'emballage, il est possible de choisir différentes machines d'emballage pour l'emballage. Nous pouvons choisir la machine d'emballage correspondante en fonction des besoins du client. Les machines d'emballage industrielles peuvent réaliser l'emballage sous vide, l'emballage en sac, l'emballage en bouteille et d'autres formes.

Why Choose Taizy?

Choosing Taizy means more than selecting a fish drying machine — it means choosing reliable quality and professional service.

• International Certifications: Certified with ISO9001 and CE, and approved by SGS and TUV inspections, ensuring stable performance and dependable quality.
• One-Year Warranty: The complete machine comes with a one-year warranty, reducing operational risks and giving you peace of mind.
• Comprehensive After-Sales Service: We provide detailed installation manuals and remote guidance. If required, engineers can be dispatched for on-site installation and training.
• Customization & Flexibility: Machines can be customized according to production capacity and raw material requirements, meeting the needs of different processing lines.

Taizy Fish Drying Machines combine stable quality, certified standards, and a complete service system to deliver efficient, safe, and standardized fish drying solutions for global customers.
