Commercial Frozen Meat Block Crushing and Grinder Line for Sale

 Frozen meat block crushing and grinder line

Frozen Meat Block Crushing and Grinder Line is a process that can crush large pieces of frozen meat first, and then grind it into the mash. A meat grinder is a necessary machine for the production of meat food processing, and the machine can be processed after processing. Production of meatballs, sausage patties, and other products.

The composition of the frozen meat block crushing and grinder line


The meat puree production line is divided into three parts. The first is the frozen meat crusher. The large pieces of frozen meat are first crushed, then connected by a hoist, and finally processed in a meat grinder.

Frozen meat blocker cutter

A frozen meat crusher is a machine that can cut boneless frozen meat into chunks or slices. The temperature range of the meat processed by the machine is -18℃—-24℃. The machine has very sharp blades and the hardness of the blades is very high. , So as to protect the machine from damage when processing large pieces of frozen meat. When buying a machine, we need to confirm the size of the frozen meat block with the customer. Generally, the size of the meat block that the machine can handle is 780mm510mm180mm, but it can also be customized according to the size of the frozen meat requested by the customer.

The working principle of the machine is that the machine pushes the frozen meat forward through the cylinder at the back, and then passes through the high-speed rotating blade, the whole piece of frozen meat can be decomposed. The working efficiency of the frozen meat crusher is very high, which can reach 3-5 tons per hour. The frozen meat grinder is made of stainless steel 304, which can be used for a long time and is very strong.

Parameters of frozen meat crusher

Voltage: 380V
Power: 5.5kw
Productivity: 3-5 tons/hour
Weight: 600kg
Body size: 1750×945×1220mm

Frozen blocks flaker hoist

The elevator is to connect the frozen meat crusher and the meat grinder, which can better realize automation, save labor, and realize the automatic feeding of the meat grinder. The height and inclination of the hoist can be customized according to the characteristics of the production site, with the goal of facilitating feeding.

Frozen meat grinder machine

A frozen meat grinder is a machine after the frozen meat crusher. After passing through the meat grinder, the meat slices or small pieces of meat can be formed into meat paste, which is suitable for making meat products such as sausages and meatballs. The exit of the frozen meat grinder is composed of a pre-cutting knife, a perforated plate, and a reamer.

Frozen meat grinder parameters

modelSize(mm)weightpowercapacity
 SL-100 900*600*960  5.5kw300-500kg
  SL-120 1050*600*1100         7.5kw500-800kg
 SL-130   1280*700*1130  8KW 800-1300kg/h

Frozen meat block crushing and grinder line precautions:

(1) Before using the new machine for the first time, it is necessary to clean the internal propeller shaft, cutting knife, and discharge knife to prevent the industrial oil from being left behind.

(2) Before powering on, check whether the power supply voltage matches the nameplate of the device. The shell of the device must be firmly grounded. It is recommended to use a leakage protector for the power switch.

(5) Before grinding meat, please cut the meat into small pieces to avoid damaging the machine.

(6) Turn on the power and add meat after normal operation. It is strictly forbidden to put your hand into the hopper when adding meat, otherwise, it may cause injury.

(7) The meat pieces must be added evenly and not excessively so as not to damage the motor. If you find that the motor is not running normally, you should cut off the power immediately and check the cause after stopping.

(9) Turn off the power after use, disassemble the head and clean it with clean water, dry or dry it. It is best to wait for the water to dry and then reassemble it to achieve the best maintenance effect. Please use the four blades after use the Knife and wipe some edible oil for maintenance.

Advantages of the frozen meat block crushing and grinder line

Due to meat transportation and storage requirements, general meat will be frozen into a large piece of meat, which is very hard, and ordinary meat grinders cannot directly divide and mince. Therefore, the meat crusher needs to be advanced and crushed before it can be put into the meat grinder. Avoid multiple thawing, which will cause the loss of nutrients in the meat taste. The machine knife is very hard and can handle frozen meat at -18°C.

Frozen Meat Block Crushing and Grinder Line is a process that can crush large pieces of frozen meat first, and then grind it into the mash. A meat grinder is a necessary machine for the production of meat food processing, and the machine can be processed after processing. Production of meatballs, sausage patties, and other products.

frozen meat block crushing and grinder line application
frozen meat block crushing and grinder line application

The composition of the frozen meat block crushing and grinder line


The meat puree production line is divided into three parts. The first is the frozen meat crusher. The large pieces of frozen meat are first crushed, then connected by a hoist, and finally processed in a meat grinder.

Frozen meat blocker cutter

A frozen meat crusher is a machine that can cut boneless frozen meat into chunks or slices. The temperature range of the meat processed by the machine is -18℃—-24℃. The machine has very sharp blades and the hardness of the blades is very high. , So as to protect the machine from damage when processing large pieces of frozen meat. When buying a machine, we need to confirm the size of the frozen meat block with the customer. Generally, the size of the meat block that the machine can handle is 780mm510mm180mm, but it can also be customized according to the size of the frozen meat requested by the customer.

Frozen  meat blocker cutter
Frozen meat blocker cutter

The working principle of the machine is that the machine pushes the frozen meat forward through the cylinder at the back, and then passes through the high-speed rotating blade, the whole piece of frozen meat can be decomposed. The working efficiency of the frozen meat crusher is very high, which can reach 3-5 tons per hour. The frozen meat grinder is made of stainless steel 304, which can be used for a long time and is very strong.

Parameters of frozen meat crusher

Voltage: 380V
Power: 5.5kw
Productivity: 3-5 tons/hour
Weight: 600kg
Body size: 1750×945×1220mm

Frozen blocks flaker hoist

The elevator is to connect the frozen meat crusher and the meat grinder, which can better realize automation, save labor, and realize the automatic feeding of the meat grinder. The height and inclination of the hoist can be customized according to the characteristics of the production site, with the goal of facilitating feeding.

hoist

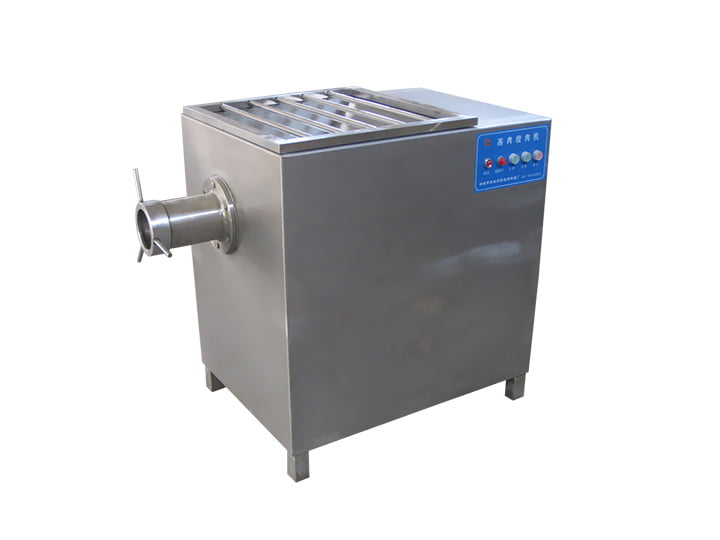

Frozen meat grinder machine

frozen meat grinder is a machine after the frozen meat crusher. After passing through the meat grinder, the meat slices or small pieces of meat can be formed into meat paste, which is suitable for making meat products such as sausages and meatballs. The exit of the frozen meat grinder is composed of a pre-cutting knife, a perforated plate, and a reamer.

Frozen meat grinder machine
Frozen meat grinder machine

Frozen meat grinder parameters

modelSize(mm)powercapacity
 SL-100 900*600*960 5.5kw300-500kg
  SL-120 1050*600*1100   7.5kw500-800kg
 SL-130   1280*700*1130 8KW 800-1300kg/h

Frozen meat grinder machine

Frozen meat block crushing and grinder line precautions:

(1) Before using the new machine for the first time, it is necessary to clean the internal propeller shaft, cutting knife, and discharge knife to prevent the industrial oil from being left behind.

(2) Before powering on, check whether the power supply voltage matches the nameplate of the device. The shell of the device must be firmly grounded. It is recommended to use a leakage protector for the power switch.

(5) Before grinding meat, please cut the meat into small pieces to avoid damaging the machine.

(6) Turn on the power and add meat after normal operation. It is strictly forbidden to put your hand into the hopper when adding meat, otherwise, it may cause injury.

(7) The meat pieces must be added evenly and not excessively so as not to damage the motor. If you find that the motor is not running normally, you should cut off the power immediately and check the cause after stopping.

(9) Turn off the power after use, disassemble the head and clean it with clean water, dry or dry it. It is best to wait for the water to dry and then reassemble it to achieve the best maintenance effect. Please use the four blades after using the Knife and wipe some edible oil for maintenance.

Frozen meat grinder machine
Frozen meat grinder machine

Advantages of the frozen meat block crushing and grinder line

Due to meat transportation and storage requirements, general meat will be frozen into a large piece of meat, which is very hard, and ordinary meat grinders cannot directly divide and mince. Therefore, the meat crusher needs to be advanced and crushed before it can be put into the meat grinder. Avoid multiple thawing, which will cause the loss of nutrients in the meat taste. The machine knife is very hard and can handle frozen meat at -18°C.

Frozen meat block crushing and grinder line video

Frozen meat block crushing and grinder line video
